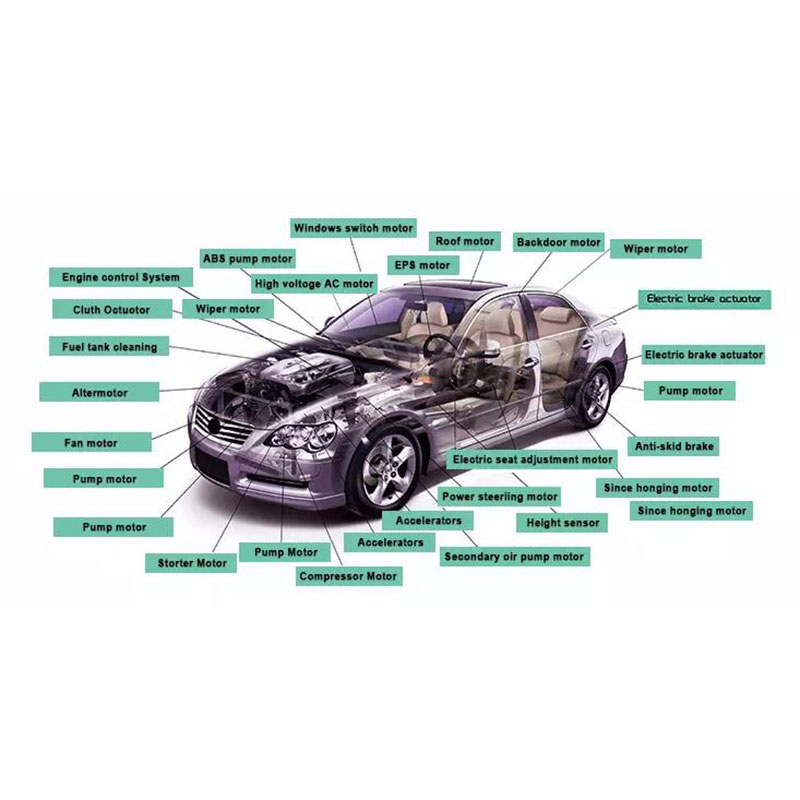

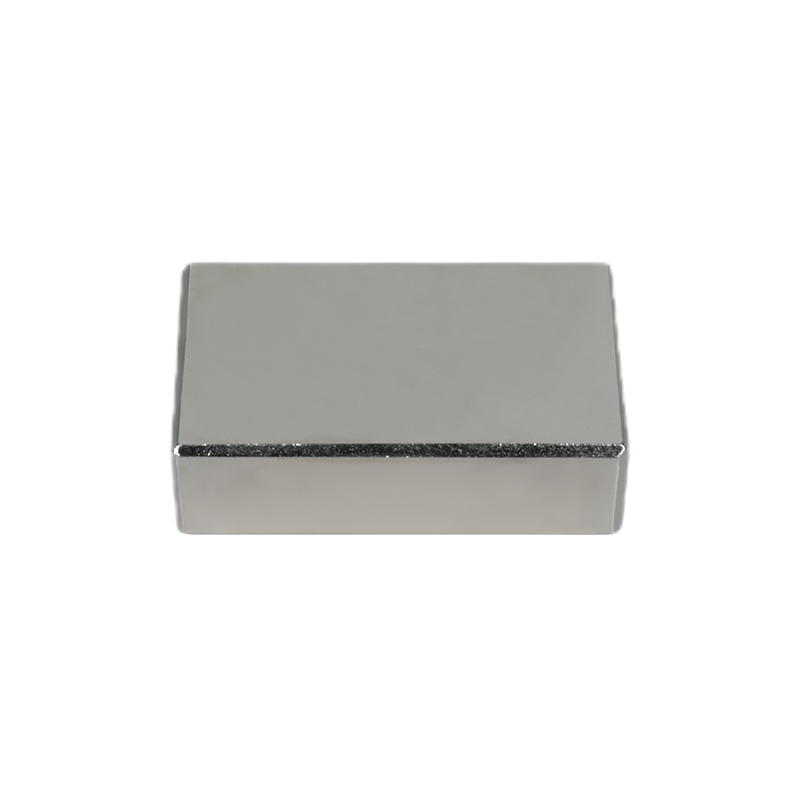

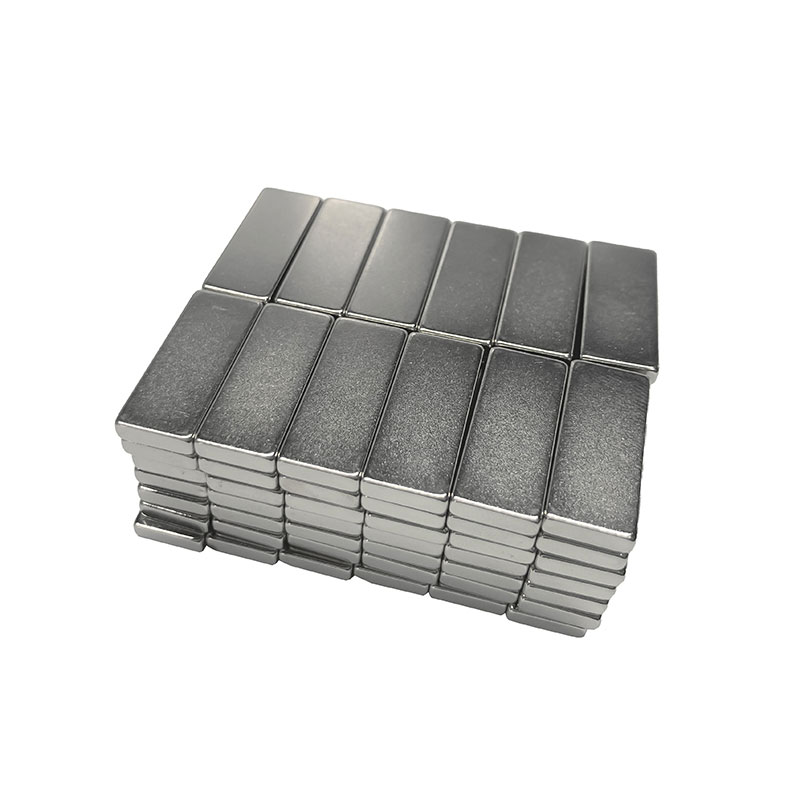

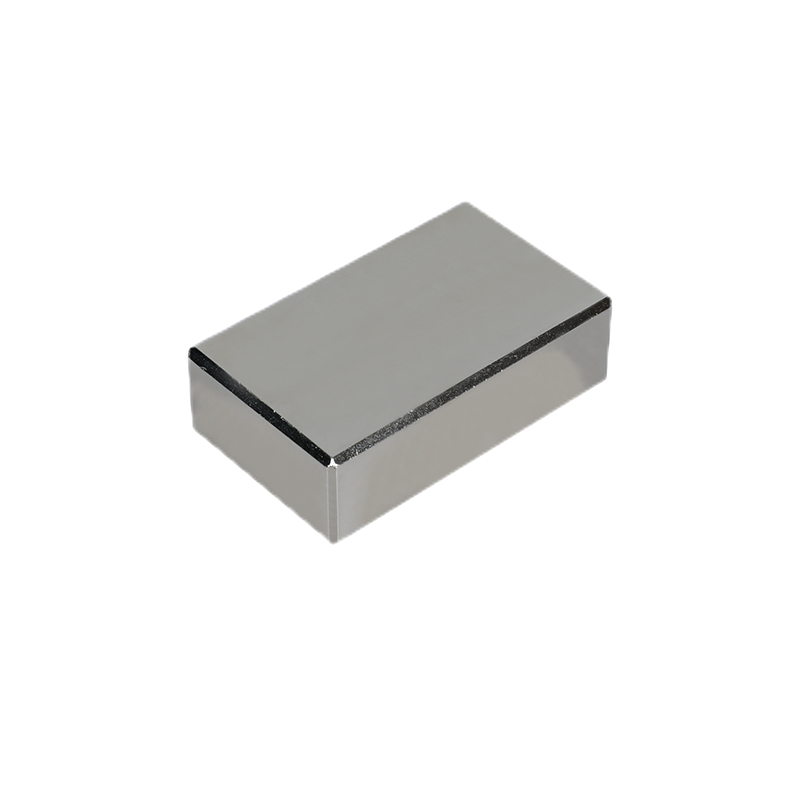

Neodymium Iron Boron (NdFeB) magnets are widely used in many industrial and commercial applications due to their high magnetic strength, excellent performance and cost-effectiveness. One such application is in the automotive air conditioning compressors, which requires the use of high-performance magnets for efficient operation and energy savings.
+86-15857968349
Performance Grades of NdFeB Magnets
NdFeB magnets come in a range of performance grades, with the most common ones being N35 to N52. The performance grade is determined by the maximum energy product of the magnet, which is the magnetic field strength multiplied by the volume of the magnet. The higher the performance grade, the higher the magnetic field strength of the magnet, and the more efficient the air conditioning compressor becomes.
Don't worry if you don't know which magnet you need for your motor project. Just tell us your applied industry, product performance parameters, size and quantity, we will recommend the most suitable product for you with our rich experience.
With a strong engineer team and professional production lines, Zhongke can design and produce magnet in all shapes according to your needs.
If you are not sure about the performance parameters of the product, you can send us a sample, we will do a professional test, determine the performance parameters and issue a report for your reference.
Exclusive customer service 7x24 hours to get professional help, make an appointment with a professional technical engineer to get a comprehensive solution.
Publicly traded listed magnet company in China. Our magnet supplied to many large, medium-scale customers including SAMSUNG, Nidec, Xiaomi, GREE, Midea, WOLONG, amazon, etc. We manufacture type of Ferrite Magnet and Neodymium(NdFeB) Magnet for electric motor, widely used in the field of new generation consumer electronics and energy-saving home appliances.
Just tell us your applied industry, product performance parameters, quantity and size, we will recommend the most suitable magnet for you.
Coatings for NdFeB Magnets
NdFeB magnets are highly susceptible to corrosion and hence, need to be coated to protect them from environmental damage. The most common coatings for NdFeB magnets are nickel, zinc, and epoxy. Nickel and zinc coatings are widely used due to their high resistance to corrosion and durability, while epoxy coatings are used for special applications where higher adhesion and resistance to chemicals are required.
Magnetization Requirements
NdFeB magnets used in air conditioning compressors need to be magnetized to a specific magnetic field strength and direction. The process of magnetization is done using specialized equipment, and the direction of magnetization is determined by the design of the compressor. It is important to ensure that the magnetization is done correctly to ensure proper functioning of the compressor.
Manufacturing Advantages of Zhejiang Zhongke Magnetic Industry Co., Ltd.
Zhejiang Zhongke Magnetic Industry Co., Ltd. is a leading manufacturer of NdFeB magnets in China and has many advantages in the manufacturing process. Some of these advantages include:
1. Advanced production equipment and production technology that ensures high-quality magnets with consistent performance.
2. Strict quality control measures that ensure that each magnet is thoroughly inspected and tested for performance and quality.
3. A team of experienced engineers and technicians who have years of experience in designing and manufacturing magnet products.
4. A commitment to customer satisfaction, which ensures that each customer is provided with customized solutions that meet their specific requirements.
The use of NdFeB magnets in automotive air conditioning compressors is essential for efficient operation and energy savings. It is important to select the right performance grade, coating, and magnetization requirements for the specific application. Furthermore, the manufacturing process is critical, and the use of a reliable and experienced manufacturer such as Zhejiang Zhongke Magnetic Industry Co., Ltd. can provide many advantages.
Zhongke is committed to becoming a world-renowned supplier of permanent magnet material application solutions in the field of new generation consumer electronics and energy-saving home appliances.
The company's current production process of permanent ferrite magnets is as follows: the purchased pre-fired materials are mixed according to their own formula and ingredients, and after being ball milled by a ball mill, ferrite is produced through steps such as precipitation, wet pressing, sintering, and grinding. Body magnetic tiles, ferrite magnets and other finished products. The specific production process flow chart is as follows:
The strontium ferrite calcined material (the main component is SrFe12O19) is mixed with calcium carbonate, silicon dioxide, strontium carbonate, lanthanum oxide, cobalt oxide and other ingredients according to the formula ratio.
The raw materials are added with water and pulverized by a ball mill to form a slurry, which is placed in a sedimentation tower for precipitation.
The dehydrated material formed by precipitation is made into a green body through an automatic press in a normal air environment.
The raw body is sintered at high temperature into a mature body through a wet-pressed magnetic tile electric-fired roller kiln or a wet-pressed magnetic steel gas-fired roller kiln.
The cooked blank is processed by a fully automatic grinding machine processing line to form a finished product.
The magnetic properties, appearance, size and other indicators of the magnets are inspected, packed and put into storage.
The company has applied and improved a number of advanced technologies in the industry, such as high-performance ferrite slurry stabilization technology and secondary ball milling batching technology, which has solved the quantitative problem of material added in the preparation process. And we use double coupling dispersion and fine grinding to overcome the problems of slurry agglomeration and particle size distribution consistency. The performance of the slurry obtained in the ball milling process is more stable, which reduces the unit operating time of the ball milling equipment, improves product quality, and reduces production costs.
The company uses a unique new green release agent independently developed to prepare magnetic tiles. The new green release agent is an organic combination of microbial technology and surface release treatment technology, which can degrade oil molecules, reduce the oil content of the release agent, and restore the surface. active lipophilic factor. The product is combined with the surface release process, and the release effect of the magnetic tile is improved through a new release agent, and the surface finish of the blank is improved. The demoulding technology has the characteristics of simple preparation method and convenient application, and improves production efficiency.
By transforming the sintering preheating system equipment, the company reduces the water content of the sintered green body in the kiln, greatly reduces the waste rate caused by factors such as cracking and lack of oxygen during sintering, and improves the sintering density and mechanical strength of the product. Obtain good microstructure and magnet properties. The company has also realized the sintering base temperature that products with different performances can adapt to through formula adjustment. Products with different specifications, sizes and performances can be co-fired at the same temperature, which significantly improves the production efficiency of the sintering process. In addition, in terms of veneer loading and billet loading, the company has adopted a bulk stacking method that conforms to the company's product features of small shape and light weight after many tests, realizing heavy veneer loading, good sintering atmosphere, and high sintering yield. good effect.
By optimizing the parameters of grinding machines and other processing equipment and improving the process technology, the company has improved the consistency of product thickness to ≤0.02MM within L30MM and ≤0.04MM within L50MM, and has mastered the technology of three-phase motor magnets produced by grinding tooling. Breakthroughs have been made in technical difficulties in the industry, such as product precision and stable equipment performance, and certain innovations have been achieved in technology and equipment.
The company's magnetic tile products are developing in the direction of high efficiency, low consumables, and low energy consumption. For example, through atomic substitution and compound doping, the rare earth-free ZK-5B high-performance motor magnetic tile independently developed by the company reduces the coagulation of magnetic powder, improves the orientation effect, improves the material performance and reduces the production cost by using strong magnetic field to suppress and adding a double dispersant.
